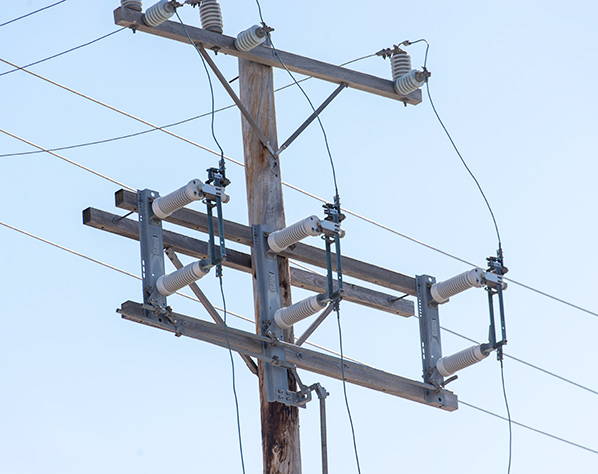

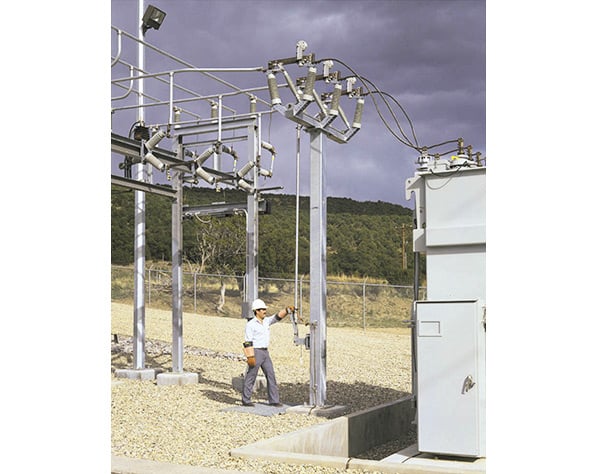

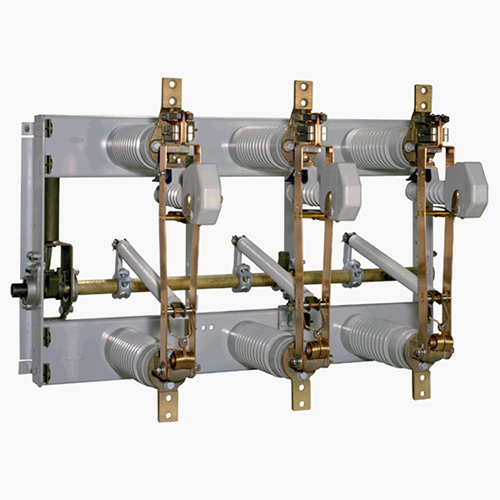

S&C Alduti-Rupter Switches provide no-external-arc circuit interruption for overhead distribution feeders and outdoor distribution substations. They are ideally suited for the following switching duties:

  • Line switching
  • Transformer switching
  • Cable switching

Alduti-Rupter Switches are available in voltage ratings through 69 kV in seven rugged group-operated, three-pole styles. They can be tailored to suit any configuration and mount on any structure. Alduti-Rupter Switches are offered in ratings of 600 through 2400 amperes continuous and 1600 amperes interrupting.

For your heavy-duty station and feeder applications — thru 69 kV

  • Adaptable to any station structure with broad choice of standard and custom mounting arrangements
  • Live switching through 1600 A simplifies switching procedures . . . saves time, reduces errors
  • Blade-to-interrupter sequencing ensures interrupters are closed when the switch is closed
  • Unmatched performance for 38-kV and 48-kV feeders with ultra-smooth single- or double-break interruption . . . plus duty-cycle fault closing
  • Proven through full-scale testing in the laboratory and the field . . . at maximum voltages, currents, and TRVs
  • Available with power operation for distribution automation or source transfer . . . with S&C’s high-speed operators matched to Alduti-Rupter and the application

For applications where there is no need for simultaneous three-phase switching, single-pole Alduti-Rupter Switches are an excellent alternative; they’re conveniently operated with a conventional hookstick.

Because Alduti-Rupter Switches can switch loaded or unloaded lines, transformers, and cables, they are ideally suited for remote supervisory control or fully automatic operation when equipped with an S&C Switch Operator–Type AS-1A (for switches with rotating operating mechanisms) or Type AS-10 (for switches with reciprocating operating mechanisms).

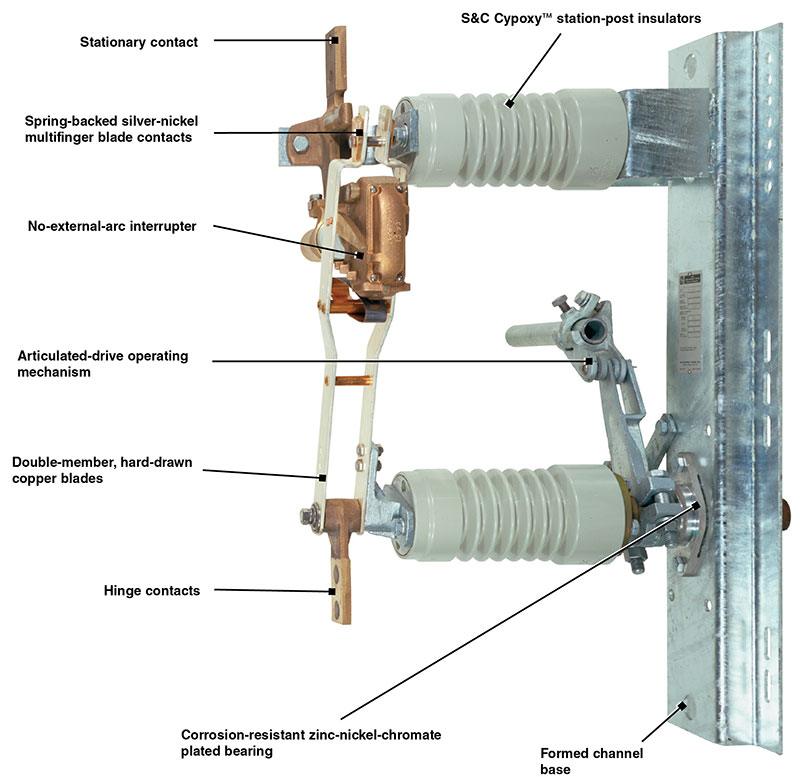

Alduti-Rupter Side-Break Switch Construction Features - Overhead Distribution

Alduti-Rupter Side-Break Switch Construction Features - Overhead Distribution

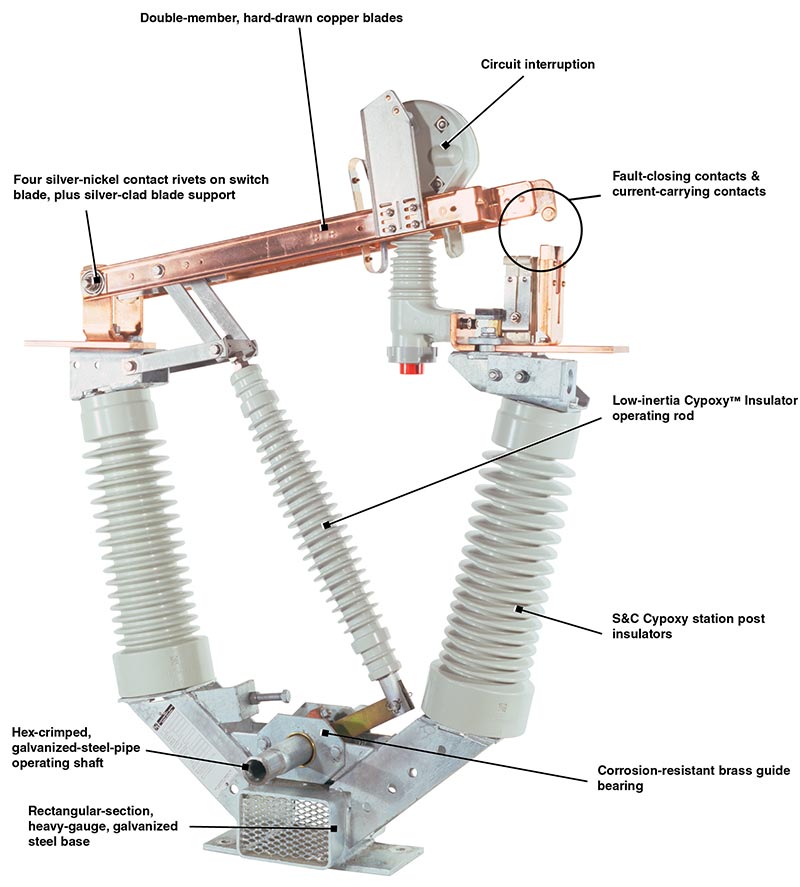

Alduti-Rupter Vertical-Break Switch Construction Features - Overhead Distribution

Alduti-Rupter Vertical-Break Switch Construction Features - Overhead Distribution

Three-Pole Side-Break Integer Style (Group Operated)

50/60-Hz Ratings
kVAmperes, RMS
Nom.MaxBILContinuous and InterruptingMomentary, Asymmetrical
14.4 17.0 110 1200 40 000
25 27 150 1200 40 000
25/34.5 38 150 600 40 000
34.5 38 200 600 40 000
34.5 38 200 1200 40 000


Three-Pole Vertical-Break Integer Style (Group Operated)

50/60-Hz Ratings
kVAmperes, RMS
Nom.MaxBILContinuous and InterruptingMomentary, Asymmetrical
25/34.5 38 150 600 40 000
25/34.5 38 150 1200 40 000
34.5 38 200 600 40 000
34.5 38 200 1200 40 000


Three-Pole Double-Break Integer Style (Group Operated)

50/60-Hz Ratings
kVAmperes
Nom.MaxBILContinuous and Interrupting (RMS)Peak Withstand
46 48.3 250 630 65 000


Three-Pole Side-Break Heavy-Duty Style (Group Operated)

50/60-Hz Ratings
kVAmperes, RMS
Nom.MaxBILContinuous and InterruptingMomentary, Asymmetrical
14.4 17.0 110 600 40 000
25 27 150 600 40 000
34.5 38 200 600 40 000
34.5 38 200 1200 40 000



Three-Pole Side-Break Standard-Duty Style (Group Operated)

50/60-Hz Ratings
kVAmperes, RMS
Nom.MaxBILContinuous and InterruptingMomentary, Asymmetrical
14.4 17.0 110 600 40 000


Three-Pole Vertical-Break Style (Group Operated)

50/60-Hz Ratings
kVAmperes, RMS
Nom.MaxBILContinuous and InterruptingMomentary, Asymmetrical
14.4 17.0 110 600 40 000
14.4 17.0 110 1200 61 000
14.4 17.0 110 2400 / 1600 40 000
25 27 150 600 40 000
25 27 150 1200 61 000
25/34.5 38 150 1200 40 000
34.5 38 200 600 40 000
34.5 38 200 1200 40 000


Three-Pole Double-Break Style (Group Operated)

50/60-Hz Ratings
kVAmperes, RMS
Nom.MaxBILContinuous and InterruptingMomentary, Asymmetrical
34.5 38 200 630 40 000
46 48.3 250 630 40 000
69 72.5 350 1200 / 600 40 000


Single-Pole Heavy-Duty Style

50/60-Hz Ratings
kVAmperes, RMS
Nom.MaxBILContinuous and InterruptingMomentary, Asymmetrical
14.4 17.0 110 600 40 000
14.4 17.0 110 1200 61 000
25 27 150 600 40 000
25 27 150 1200 61 000

A variety of optional features are available for Alduti-Rupter Switches:

  • Mounting provisions for surge arresters
  • Ice shields
  • Dead-ending provisions
  • Extension-link assemblies
  • Fiberglass insulating section in vertical operating shaft
  • Cypoxy™ Insulator in vertical operating shaft
  • Insulated interphase sections
  • Key interlocks

6801M Automatic Switch Operators

6801M Automatic Switch Control

6801M Automatic Switch Operators are fully integrated, microprocessor-based controls that let you automate almost any distribution-class switch and are an ideal match for Alduti-Rupter Switches. By combining and testing the electromechanical components, RTU, control, and communications as a single package, we also added intelligence, increased reliability, and reduced costs.

S&C 6801M Automatic Switch Operators are available in two versions—torsional, for rotating-type mechanisms, and reciprocating, for reciprocating-type operating mechanisms. Both versions operate in 0.5 seconds. This high operating speed is fully compatible with the moving-contact velocity required by the interrupters to ensure full interrupting capability for the applicable switch styles and mounting arrangements.


AS-1A and AS-10 Switch Operators

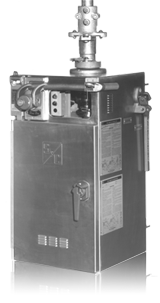

AS-1A Switch Operator

Types AS-1A and AS-10 Switch Operators are high-speed operators expressly designed for power operation of S&C Alduti-Rupter Switches.

  • Type AS-1A Switch Operators are intended for use with S&C Alduti-Rupter Switches with rotating-type operating mechanisms and have a maximum operating time of 0.75 second.
  • Type AS-10 Switch Operators are intended for use with S&C Alduti-Rupter Switches with reciprocating-type operating mechanisms and have a maximum operating time of 1.2 seconds. This high operating speed provides sufficient moving-contact velocity in the Alduti-Rupter Switch interrupters to ensure full interrupting capability and long operating life.

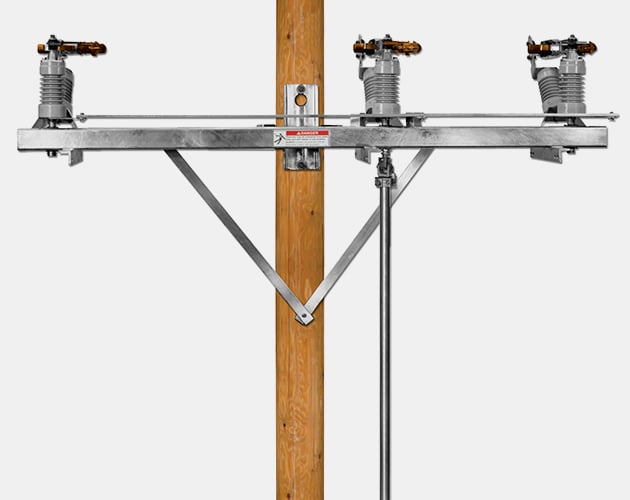

A variety of mounting configurations are available, tailored to the most popular overhead-distribution line designs. Refer to S&C Publication 761-80 for standard mounting arrangements.

Standard erection drawings

Standard erection drawings for S&C Alduti-Rupter® Switches, Omni-Rupter® Switches, Scada-Mate® Switches, Circuit-Switchers, etc. can be requested by completing the form here.
